Description

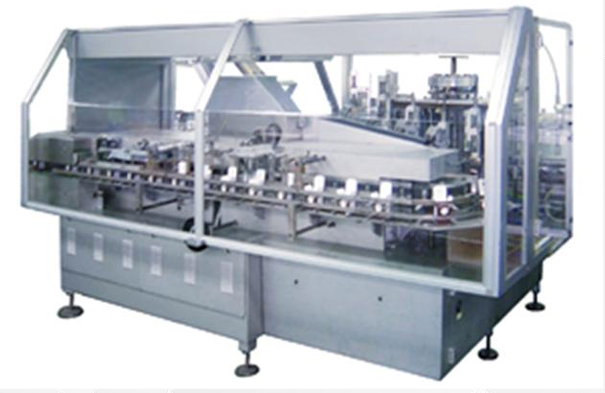

The LAV70/150 is a vertical automatic cartoning machine designed for 70–150 cartons per minute. It uses advanced servo control for vertical loading and is equipped with barcode recognition, defective product rejection, and password-protected operations. With its high efficiency and GMP compliance, it is widely used in pharmaceuticals, food, electronics, and cosmetics industries.

Specifications:

• Production Speed: 70–150 cartons/min

• Carton Size (L×W×H): (40–230) × (20–150) × (14–80) mm

• Carton Requirement: 250–350 g/m²

• Instruction Manual Size (L×W): (60–280) × (40–190) mm

• Instruction Manual Requirement: 50–70 g/m²

• Compressed Air Consumption: 2.5 m³/h | Pressure: 0.5–0.7 MPa

• Vacuum: 60 m³/h, 0.12 bar

• Power Specifications: 380V, 50Hz | Motor 3–5 kW

• Machine Dimensions (L×W×H): 4000 × 1360 × 1800 mm

• Weight: 2000–2500 kg
