Description

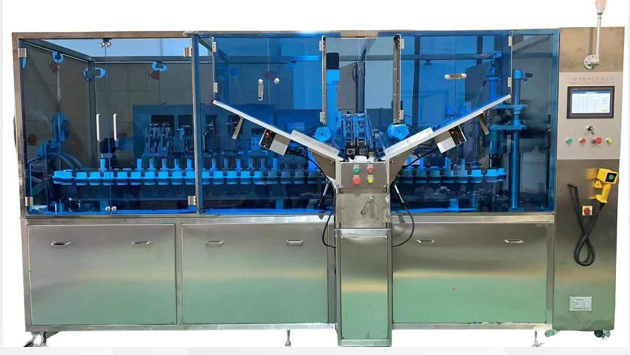

The LFC220AB is a medium-speed, double-head, fully servo-driven tube filling and sealing machine. Designed for precision and stability, it integrates robot technology and servo bus control, ensuring smooth and efficient performance. Equipped with advanced PLC control and HMI interface, it guarantees high accuracy, reliable sealing, and reduced downtime.

It is especially suitable for manufacturers handling pharmaceutical ointments, cosmetics, food creams, and chemical pastes, offering cost-effective automation for mid-volume production.

Specifications:

• Tube Size: Diameter 11–50mm | Length 60–250mm

• Sealing Method:

  • Type A: Metal flexible tube – single-sided or saddle-shaped folded edge

  • Type B: Plastic/Aluminum composite tube – high frequency or hot air sealing

• Production Speed: 150–180 tubes/min

• Applicable Tubes: Metal, composite, and plastic tubes

• Applicable Materials: Gel, water-based ointment, oily ointment

• Power Specifications: 380V, 50Hz | 16–26 kW

• Pressure: 0.6 MPa

• Tube Delivery Method: Tube Transfer Machine or Robot

• Overall Dimensions (L×W×H): 2000–3300 × 1000–1600 × 2200 mm
