Description

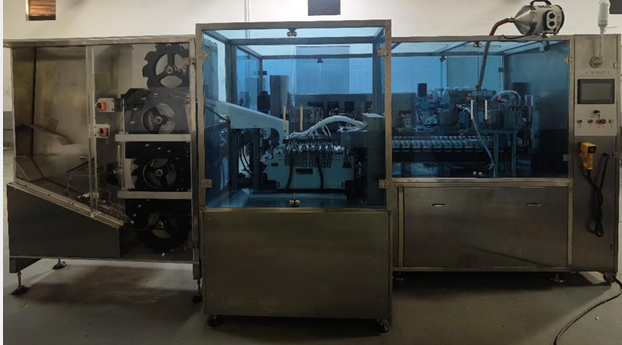

The LFC4002AB is a high-speed, four-head fully servo-controlled tube filling and sealing machine, designed for sterile production. It offers exceptional speed, precision, and reliability, making it ideal for industries such as pharmaceuticals, cosmetics, food, and chemicals. Its servo-controlled filling and lifting system ensures bubble-free, splash-free, and drip-free filling, while the flat clamp sealing device provides easy cleaning and maintenance.

This machine is engineered to handle multiple tube types — metal, aluminum-plastic composite, and all-plastic tubes, making it a versatile solution for modern packaging requirements.

• Tube Size: Diameter 11–50mm | Length 60–250mm

• Sealing Method:

  • Type A: Metal tube – single-sided or saddle-shaped folded edge

  • Type B: Plastic/Aluminum composite tube – high frequency or hot air sealing

• Production Speed: 260–320 tubes/min

• Applicable Tubes: Metal, composite, and plastic tubes

• Applicable Materials: Gel, water-based ointment, oily ointment

• Power Specifications: 380V, 50Hz | 25–35 kW

• Pressure: 0.6 MPa

• Tube Delivery Method: Tube Transfer Machine or Robot

• Overall Dimensions (L×W×H): 2680–4900 × 1140–1750 × 2200 mm
