Description

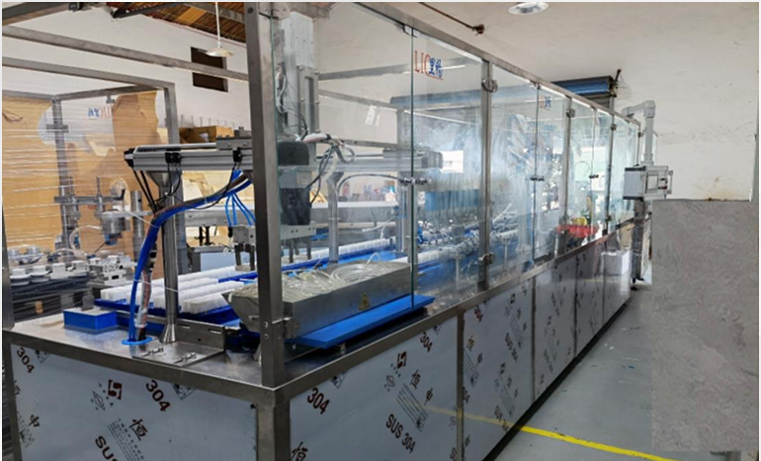

The LFM120 is a high-speed bottle filling and sealing production line designed for ointment, lotion, oils, and liquid-based products. It adopts linear servo filling and servo cap spinning technology, ensuring precision, consistency, and efficiency. With advanced PLC control and human-machine interface (HMI), the system provides stable performance, user-friendly operation, and compliance with GMP standards.

This equipment is built for industries such as pharmaceuticals, cosmetics, food & beverages, and chemicals, offering an ideal solution for large-scale production.

Specifications:

• Production Speed: >120 bottles/min

• Filling Volume: 5–200 ml

• Number of Filling Heads: 4

• Filling Accuracy: ±0.5–1%

• Color Code Positioning: ±1°

• Applicable Bottle Materials: Metal, plastic, composite bottles

• Bottle Size: Diameter 15–60 mm | Height (without cap) 50–220 mm

• Power Specifications: 380V, 50Hz | 32 kW

• Compressed Air Pressure: 0.6 MPa | Air Consumption: 120 m³/h

• Weight: 5800 kg
